英国CMP铠装防爆格兰T3CDS系列（CMP T3CDS Cable gland）
CMP防爆格兰代理商: 上海颐品自动化科技有限公司
EPIN AUTOMATION Hot-line：4008552521

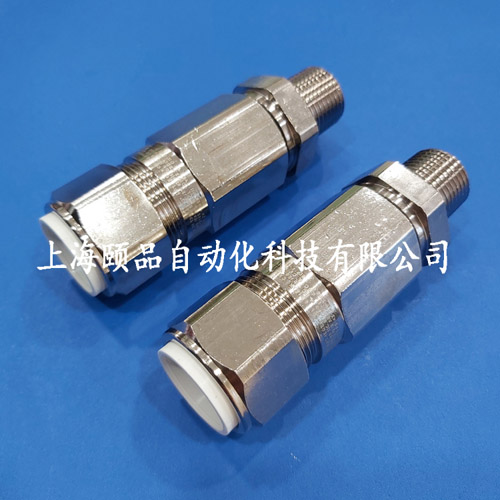

Triton CDS (T3CDS) | Ex eb, Ex db, Ex nR & Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured Cables
Globally Approved, Explosive Atmosphere Cable Gland
• Fully sequential, three step installation procedure
• Reduces installation times, cost & risk
• Direct & remote installation
• Unique compensating displacement seal system (CDS)
– metal-to-metal installation every time regardless of cable diameter
• Designed to prevent Coldflow, see CMP Technical document TS002 (available upon request)
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C (standard), -20°C to 200°C (ThermEx option T3CDSHT)
• Globally marked, IECEx, ATEX, UL & cCSAus
• EMC tested
† Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) ａnd Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ａnd Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).
Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.
Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables.
For under / oversized armour wires click here
If you require further information or are interested in purchasing, please contact EPIN AUTOMATION
Patents granted: DE 1077517, FR 1077517, GB 1077517
PRODUCT SELECTION TABLE
CMP防爆格兰（CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
