CMP-90°防爆弯接头（787系列）
CMP-90°防爆弯接头（787系列）
PRODUCT SELECTION TABLE
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司 787 | 90 Degree Adaptor（787系列CMP防爆弯接头）
Available in brass, nickel plated brass, aluminium, stainless steel
CMP防爆格兰（CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司

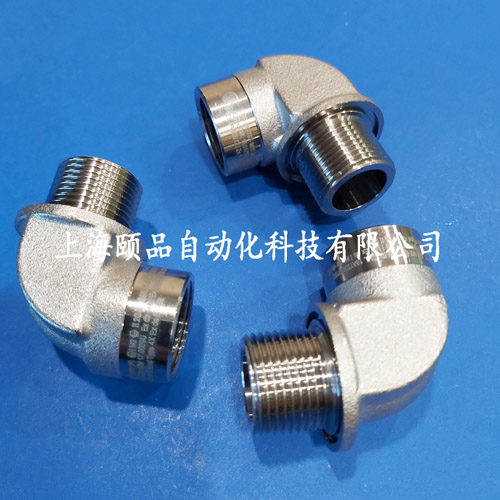

90° Adaptor, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Protects cables from excessive bending stress
• General purpose / industrial version available
• Supplied with male or female threads
• Can be supplied with thread conversion
• Equipment interface ‘O’ ring seal available
• -60°C to +200°C
• Globally marked, IECEx, ATEX & cCSAus
• Can be used with 737 (not Ex d direct entry applications)
PRODUCT SELECTION TABLE
TO VIEW HOW TO ORDER
| Ordering Reference |
Male Thread Size 'A' |
Minimum Thread Length 'E' |
Bore Diameter 'C' |
Female Thread Size |
Protrusion Length 'D' |
Protrusion Length 'F' |
Width 'B' |
Width 'B' |
| 787DM2M2 | M20 X 1.5 | 15.3 | 14.0 | M20 X 1.5 | 29.6 | 41.0 | 24.0 | 7 |
| 787DM3M3 | M25 X 1.5 | 15.3 | 18.6 | M25 X 1.5 | 36.3 | 49.3 | 29.0 | 10 |
| 787DM4M4 | M32 X 1.5 | 15.3 | 25.6 | M32 X 1.5 | 45.2 | 56.3 | 36.0 | 15 |
| 787DM5M5 | M40 X 1.5 | 15.3 | 33.6 | M40 X 1.5 | 54.2 | 64.8 | 44.0 | 25 |
| 787DM6M6 | M50 X 1.5 | 15.3 | 41.0 | M50 X 1.5 | 68.3 | 74.0 | 54.0 | 30 |
| 787DM7M7 | M63 X 1.5 | 15.3 | 50.0 | M63 X 1.5 | 97.0 | 104.3 | 75.3 | 45 |
| 787DM8M8 | M75 X 1.5 | 15.3 | 61.3 | M75 X 1.5 | 97.0 | 111.3 | 79.5 | 45 |
| 787DM9M9 | M90 X 2.0 | 15.3 | 80.0 | M90 X 2.0 | 100.0 | 131.3 | 110.0 | 45 |
| 787DM10M10 | M100 X 2.0 | 15.3 | 91.0 | M100 X 2.0 | 110.0 | 141.3 | 115.0 | 45 |
| Dimensions displayed in millimeters unless otherwise stated | ||||||||
TECHNICAL ILLUSTRATION
