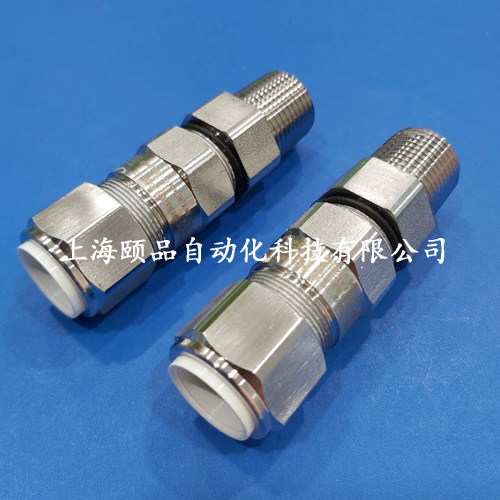

CMP不锈钢316L铠装防爆密封格兰（TE1FU系列）

CMP不锈钢316L铠装防爆密封格兰（TE1FU系列）

英国CMP不锈钢铠装防爆格兰（TE1FU系列）
CMP cable gland（TE1FU series）
EPIN AUTOMATION Hotline：4008552521
CMP不锈钢铠装防爆格兰（TE1FU-CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司

TE1FU | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured Cables
Globally Approved, Explosive Atmosphere Cable Gland

• Stainless steel compact design
• Fully sequential, three step installation procedure
• Reduces installation times, cost & risk
• Direct & remote installation
• Unique compensating displacement seal system(CDS)
• metal-to-metal installation regardless of cable bedding diameter
• Designed to prevent Coldflow, see CMP Technical document TS002 (available upon request)
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C
• Globally marked, IECEx, ATEX & cCSAus
• Superior EMC performance

CERTIFICATES

    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •

PRODUCT SELECTION TABLE-TO VIEW HOW TO ORDER

Cable Gland Size Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) Cable
Bedding
Diameter
＇A＇		 Overall
Cable
Diameter
＇B＇		 Armour Range Across
Flats
＇D＇		 Across
Corners
＇D＇		 Protrusion
Length ＇F＇		 Combined Ordering Reference
(Stainless Steel Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard Option Grooved Cone (X) Stepped Cone (W)
Metric Thread Length (Metric) ＇E＇ NPT Thread Length
(NPT) ＇E＇		 NPT Min Max Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½＇ 19.9 ¾" 3.1 8.6 6.1 13.1 0.3 1.0 0.8 1.25 24.0 26.4 57.3 20S16 TE1FU 1RA4 PVC04 0.15
20S M20 15.0 ½＇ 19.9 ¾" 6.1 11.6 9.5 15.9 0.3 1.0 0.8 1.25 24.0 26.4 57.3 20S TE1FU 1RA4 PVC04 0.15
20 M20 15.0 ½＇ 19.9 ¾" 6.5 13.9 12.5 20.9 0.4 1.0 0.8 1.25 30.5 33.6 61.2 20 TE1FU 1RA4 PVC06 0.23
25S M25 15.0 ¾＇ 20.2 1" 11.1 19.9 14.0 22.0 0.4 1.2 1.25 1.6 37.5 41.3 74.0 25S TE1FU 1RA4 PVC09 0.34
25 M25 15.0 ¾＇ 20.2 1" 11.1 19.9 18.2 26.2 0.4 1.2 1.25 1.6 37.5 41.3 74.0 25 TE1FU 1RA4 PVC09 0.34
32 M32 15.0 1＇ 25.0 1 ¼" 17.0 26.2 23.7 33.9 0.4 1.2 1.6 2.0 46.0 50.6 78.2 32 TE1FU 1RA4 PVC11 0.55
40 M40 15.0 1 ¼＇ 25.6 1 ½" 22.0 32.1 27.9 40.4 0.4 1.6 1.6 2.0 55.0 60.5 81.6 40 TE1FU 1RA4 PVC15 0.79
50S M50 15.0 1 ½＇ 26.1 2" 29.5 38.1 35.2 46.7 0.4 1.6 2.0 2.5 60.0 66.0 88.1 50S TE1FU 1RA4 PVC18 1.00
50 M50 15.0 2＇ 26.9 2 ½" 35.6 44.0 40.4 53.0 0.6 1.6 2.0 2.5 70.1 77.1 91.2 50 TE1FU 1RA4 PVC21 1.37
63S M63 15.0 2＇ 26.9 2 ½" 40.1 49.9 45.6 59.4 0.6 1.6 2.0 2.5 75.0 82.4 90.5 63S TE1FU 1RA4 PVC23 1.50
63 M63 15.0 2 ½＇ 39.9 3" 47.2 55.9 54.6 65.8 0.6 1.6 2.0 2.5 80.0 88.0 90.3 63 TE1FU 1RA4 PVC25 1.56
75S M75 15.0 2 ½＇ 39.9 3" 52.8 61.9 59.0 72.0 0.6 1.6 2.0 2.5 90.0 99.0 104.7 75S TE1FU 1RA4 PVC28 2.45
75 M75 15.0 3＇ 41.5 3 ½" 59.1 67.9 66.7 78.4 0.6 1.6 2.5 3.0 100.0 110.0 110.8 75 TE1FU 1RA4 PVC30 3.15
90 M90 24.0 3 ½＇ 42.8 4" 66.6 78.6 76.2 90.3 0.8 1.6 3.15 4.0 115.0 126.5 135.5 90 TE1FU 1RA4 PVC32 4.62
100 M100 24.0 3 ½＇ 42.8 4" 76.0 90.9 86.1 101.4 0.8 1.6 3.15 4.0 127.0 139.7 126.8 100 TE1FU 1RA4 LSF33 4.95
115 M115 24.0 4" 44.0 5" 86.0 97.9 101.5 110.2 0.8 1.6 3.15 4.0 138.0 151.8 157.5 115 TE1FU 1RA4 LSF34 7.60
130 M130 24.0 5" 46.8 - 97.0 114.9 110.2 123.2 0.8 1.6 3.15 4.0 157.0 172.7 164.5 130 TE1FU 1RA4 LSF35 8.73
Dimensions displayed in millimeters unless otherwise stated
