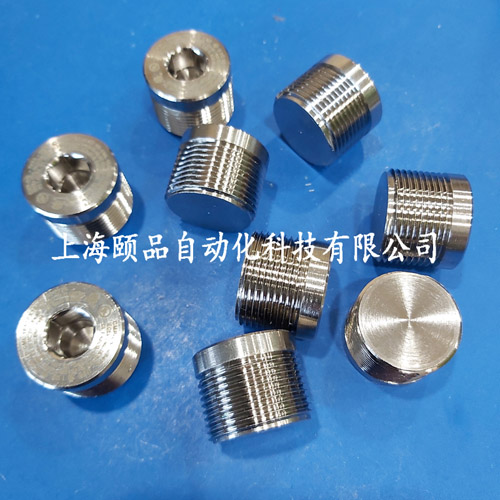

CMP嵌入式金属防爆堵头（747系列）
747 | Recessed Stopper Plug
Recessed Stopper Plug, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory
• Provides means of blanking unused cable entries • Temporary or permanent • Tamper-proof (Type B) version available • General purpose / industrial version available • Nylon Ex e only version available (-20°C to +60°C) • -60°C to +200°C (metallic versions) • Globally marked, IECEx, ATEX, cCSAus & UL • For use with threaded entry holes only – for stopper plugs suitable for use in clearance/through holes, please see 757 or 767 • Nylon stopper 717 / 717e to be used for sizes M20, M25, M32, 1⁄2″, 3⁄4″ and 1″
Please note: 747 Stopper Plugs have passed IP66 compliance tests to IEC 60529 with no additional sealing. However CMP would recommend the addition of thread sealant or grease (such as Dow Corning No. 4 Silicone) in order to help maintain IP66 and keep water out of the enclosure in the long-term. The addition of thread sealant or grease is permitted as long as it is non-setting, non-metallic and non-combustible in compliance with IEC 60079-14.
| Description | Allen Key Recess | metallic | Non-metallic | |||
| Ex 'd' | Ex 'e' | Industrial | Ex 'e' | Industrial | ||
| 747 Recessed Non-Tamper Proof Type 'A' | Y | Y | Y | Y | Y | Y |
| 747 Recessed Tamper Proof Type 'B' | Y | Y | Y | Y | Y | Y |
| 757 Hexagon Head | N | Y | Y | Y | Y | Y |
| 757 Hexagon Head c/w 'O' ring seal | N | Y | Y | Y | Y | Y |
| 767 Dome Head | Y | Y | Y | Y | Y | Y |
| 767 Dome Head c/w 'O' ring seal | Y | Y | Y | Y | Y | Y |
| 717 Universal | Y | N | N | N | Y | Y |
HOW TO ORDER e.g. 747 – D – A – M – 3 – 1 = Dual Certified Ex d & Ex e- Type A – M25 – Aluminium
For Tamper-Proof Type B Stopper Plugs please substitute the letter A with the letter B in the ordering reference list below.
Other thread variations are available on request.
For further information on ordering please contact EPIN AUTOMATION.
PRODUCT SELECTION TABLE
| Ordering Reference |
Thread Size |
Minimum Thread Length |
Allen Key Size A/F |
| 747DAM1 | M16 X 1.5 | 15.0 | M8 |
| 747DAM2 | M20 X 1.5 | 15.0 | M10 |
| 747DAM3 | M25 X 1.5 | 15.0 | M10 |
| 747DAM4 | M32 X 1.5 | 15.0 | M10 |
| 747DAM5 | M40 X 1.5 | 15.0 | M10 |
| 747DAM6 | M50 X 1.5 | 15.0 | M10 |
| 747DAM7 | M63 X 1.5 | 15.0 | M14 |
| 747DAM8 | M75 X 1.5 | 15.0 | M14 |
| 747DAM9 | M90 X 2.0 | 24.0 | M14 |
| 747DAM10 | M100 x 2.0 | 24.0 | M14 |
| Dimensions displayed in millimeters unless otherwise stated | |||
| If a nylon stopper is required for sizes M20, M25, M32, 1⁄2", 3⁄4" and 1" please order717 or 717e. | |||
