CMP非铠防爆格兰密封接头（A2F系列）

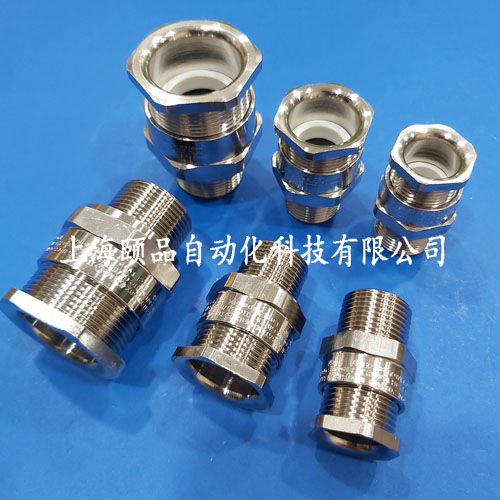

CMP非铠防爆格兰（A2F系列）

A2F Cable GlandHazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格兰代理商：上海颐品自动化科技有限公司

关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀

CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司

A2F Cable Gland，explosive atmosphere single seal globally approved gland

Globally Approved, Explosive Atmosphere Cable Gland

• Displacement type flameproof seal

• Deluge protected

• -60°C to +130°C (standard), -20°C to 200°C (ThermEx option )

• Globally marked, IECEx, ATEX & CSA

• Class I Zone 1, Class I Division 2 BCD (Canada Only)

For all types of Unarmoured & Braid Armour Cables

PRODUCT SELECTION TABLE（上海颐品自动化-选型表格）

Cable Gland Size Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) Overall
Cable
Diameter
'A' Across
Flats
'D' Across
Corners
'D' Protrusion
Length 'F' Combined Ordering Reference
(*Brass Metric) Shroud Cable
Gland
Weight
(kgs)

Standard Option

Metric Thread Length (Metric) 'E' NPT Thread Length
(NPT) 'E' NPT Min Max Max Max Size Type Ordering
Suffix

16 M16 15.0 - - - 3.2 8.7 24.0 26.4 29.9 16 A2F 1RA PVC04 0.06

20S16 M20 15.0 ½" 19.9 ¾" 3.2 8.7 24.0 26.4 26.0 20S16 A2F 1RA PVC04 0.07

20S M20 15.0 ½" 19.9 ¾" 6.1 11.7 24.0 26.4 26.0 20S A2F 1RA PVC04 0.06

20 M20 15.0 ½" 19.9 ¾" 6.5 14.0 27.0 29.7 27.7 20 A2F 1RA PVC05 0.07

25 M25 15.0 ¾" 20.2 1" 11.1 20.0 36.0 39.6 35.5 25 A2F 1RA PVC09 0.13

32 M32 15.0 1" 25.0 1 ¼" 17.0 26.3 41.0 45.1 35.1 32 A2F 1RA PVC10 0.15

40 M40 15.0 1 ¼" 25.6 1 ½" 23.5 32.2 50.0 55.0 35.1 40 A2F 1RA PVC13 0.20

50S M50 15.0 1 ½" 26.1 2" 31.0 38.2 55.0 60.5 33.0 50S A2F 1RA PVC15 0.26

50 M50 15.0 2" 26.9 2 ½" 35.6 44.0 60.0 66.0 37.3 50 A2F 1RA PVC18 0.27

63S M63 15.0 2" 26.9 2 ½" 41.5 49.9 70.5 77.6 33.5 63S A2F 1RA PVC21 0.43

63 M63 15.0 2 ½" 39.9 3" 47.2 55.9 75.0 82.5 36.2 63 A2F 1RA PVC23 0.40

75S M75 15.0 2 ½" 39.9 3" 54.0 61.9 84.0 92.4 34.1 75S A2F 1RA PVC24 0.52

75 M75 15.0 3" 41.5 3 ½" 61.1 67.9 84.0 92.4 40.9 75 A2F 1RA PVC24 0.50

90 M90 24.0 3 ½" 42.8 4" 66.6 79.9 108.0 118.8 60.3 90 A2F 1RA PVC31 1.60

100 M100 24.0 3 ½" 42.8 4" 76.0 91.0 123.0 135.3 57.2 100 A2F 1RA - 1.78

115 M115 24.0 4" 44.0 5" 86.0 97.9 133.4 146.7 67.3 115 A2F 1RA - 2.67

130 M130 24.0 5" 46.8 - 97.0 114.9 152.4 167.6 74.7 130 A2F 1RA - 3.80

Dimensions are displayed in millimetres unless otherwise stated

TECHNICAL ILLUSTRATION

询价单

CMP非铠防爆格兰（A2F系列）

推荐产品

猜你喜欢

TECHNICAL ILLUSTRATION

产品分类

联系我们

版权信息

Cable Gland Size	Available Entry Threads 'C' (Alternate Metric Thread Lengths Available)					Overall Cable Diameter 'A'		Across Flats 'D'	Across Corners 'D'	Protrusion Length 'F'	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (kgs)
	Standard				Option	Overall Cable Diameter 'A'		Across Flats 'D'	Across Corners 'D'		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) 'E'	NPT	Thread Length (NPT) 'E'	NPT	Min	Max	Max	Max		Size	Type	Ordering Suffix
16	M16	15.0	-	-	-	3.2	8.7	24.0	26.4	29.9	16	A2F	1RA	PVC04	0.06
20S16	M20	15.0	½"	19.9	¾"	3.2	8.7	24.0	26.4	26.0	20S16	A2F	1RA	PVC04	0.07
20S	M20	15.0	½"	19.9	¾"	6.1	11.7	24.0	26.4	26.0	20S	A2F	1RA	PVC04	0.06
20	M20	15.0	½"	19.9	¾"	6.5	14.0	27.0	29.7	27.7	20	A2F	1RA	PVC05	0.07
25	M25	15.0	¾"	20.2	1"	11.1	20.0	36.0	39.6	35.5	25	A2F	1RA	PVC09	0.13
32	M32	15.0	1"	25.0	1 ¼"	17.0	26.3	41.0	45.1	35.1	32	A2F	1RA	PVC10	0.15
40	M40	15.0	1 ¼"	25.6	1 ½"	23.5	32.2	50.0	55.0	35.1	40	A2F	1RA	PVC13	0.20
50S	M50	15.0	1 ½"	26.1	2"	31.0	38.2	55.0	60.5	33.0	50S	A2F	1RA	PVC15	0.26
50	M50	15.0	2"	26.9	2 ½"	35.6	44.0	60.0	66.0	37.3	50	A2F	1RA	PVC18	0.27
63S	M63	15.0	2"	26.9	2 ½"	41.5	49.9	70.5	77.6	33.5	63S	A2F	1RA	PVC21	0.43
63	M63	15.0	2 ½"	39.9	3"	47.2	55.9	75.0	82.5	36.2	63	A2F	1RA	PVC23	0.40
75S	M75	15.0	2 ½"	39.9	3"	54.0	61.9	84.0	92.4	34.1	75S	A2F	1RA	PVC24	0.52
75	M75	15.0	3"	41.5	3 ½"	61.1	67.9	84.0	92.4	40.9	75	A2F	1RA	PVC24	0.50
90	M90	24.0	3 ½"	42.8	4"	66.6	79.9	108.0	118.8	60.3	90	A2F	1RA	PVC31	1.60
100	M100	24.0	3 ½"	42.8	4"	76.0	91.0	123.0	135.3	57.2	100	A2F	1RA	-	1.78
115	M115	24.0	4"	44.0	5"	86.0	97.9	133.4	146.7	67.3	115	A2F	1RA	-	2.67
130	M130	24.0	5"	46.8	-	97.0	114.9	152.4	167.6	74.7	130	A2F	1RA	-	3.80
Dimensions are displayed in millimetres unless otherwise stated
